Quick Details

  • Light Source: LED
  • Item Type: Downlights
  • LED Light Source: Bridgelux
  • Warranty(Years): 5
  • Input Voltage(V): 110v/220v
  • Lamp Power(W): 9
  • Lamp Luminous Flux(lm): 540
  • Lamp Luminous Efficiency(lm/w): 60
  • CRI (Ra>): 95
  • Color Temperature(CCT): dim to wam
  • Working Temperature(℃): -20 - 60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP44
  • Certification: CE, EMC, ETL, FCC, LVD, RoHS, SAA, VDE, CE,ROHS, TUV, SAA NEMKO
  • Model Number: Swan-18V-9WFS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Lepu lighting
  • Color temperature: 2000k to 2800k
  • Led brand: Bridgelux COB
  • CRI: 95
  • Beam angle: 45 degree
  • cutout: 83mm
  • Demension: 95*95*49mm
  • waterproof: IP44
  • warranty: 5years
  • Item: norge dimmable 8w cob downlight warmdim

Packaging & Delivery

Packaging Details 1pcs/box, 40pcs/carton
colour box design service is ok if order more than 500pcs
Delivery Time delivery in 3-5working days after receive the payment copy

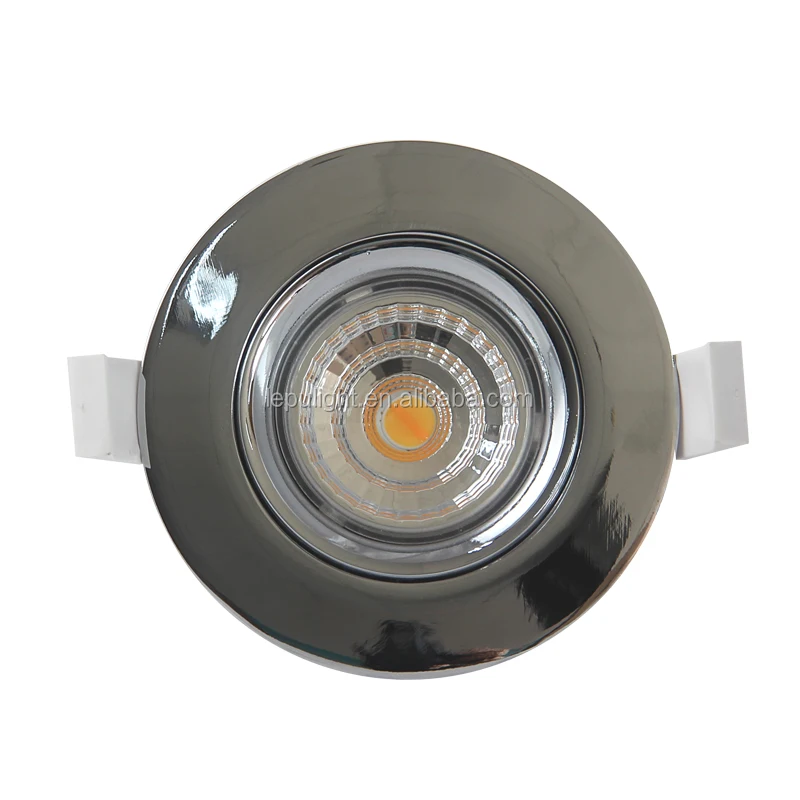

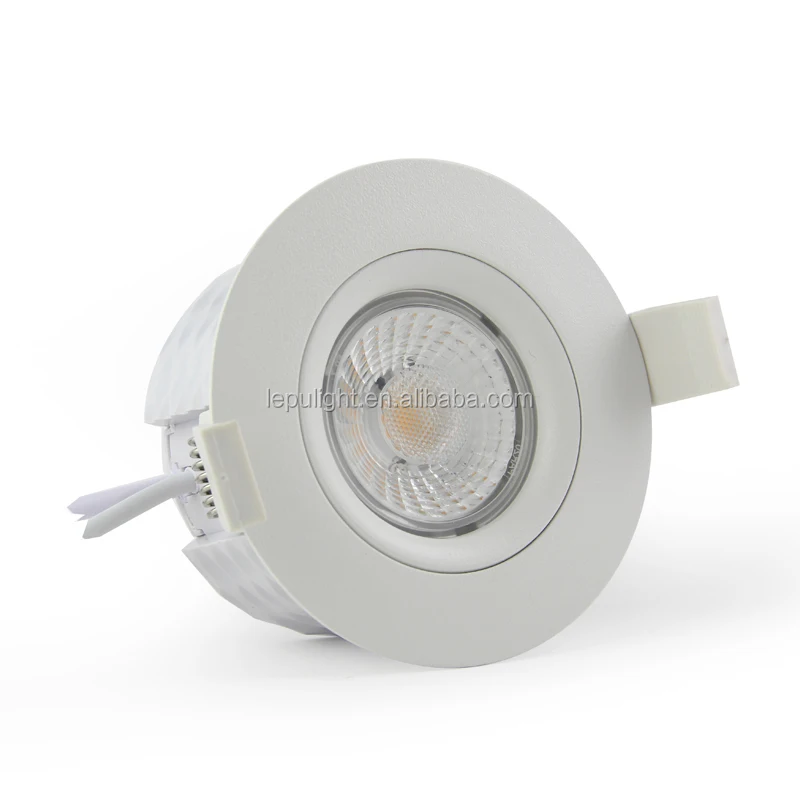

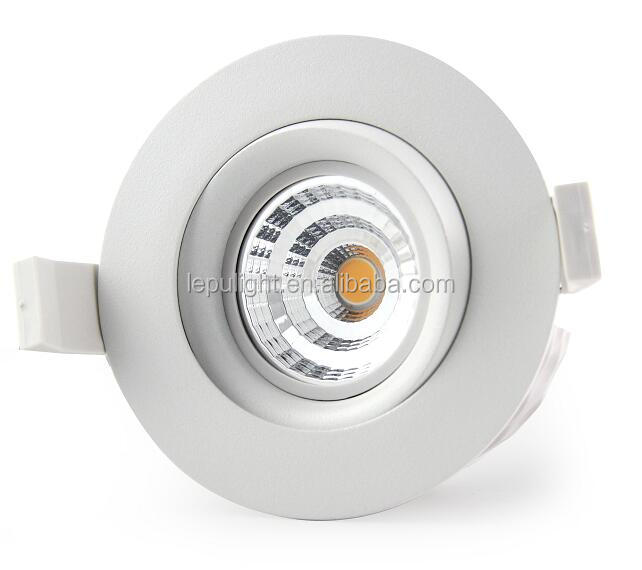

Direct mount 360deg tilt  GYRO Norge dimmable 8w cob downlight warmdim IP44

If interested item,welcome send an inquiry or mail to sales03(@)lepulighting.com O(∩_∩)O



Product Description
Installation very simple!!!
360° tilt change lighting direction GYRO function
Widely used indoor and outdoor.

Model numberSwan-18V-9WTSwan-18V-9WF   Swan-18V-9WTSSwan-18V-9WFSSwan-18V-9WT2SSwan-18V-9WF2S

Lamp Power

9W9W9W9W9W9W
Beam angle24° 40° 60° (lens) 45°  (reflector)24° 40° 60° (lens)     45°  (reflector)24° 40° 60° (lens)     45°  (reflector)

Luminous  output

540LM

540LM540LM540LM1080LM1080LM

Size

Φ95*49mmΦ95*49mmΦ95*95*49mmΦ95*95*49mmΦ180*95*49mmΦ180*95*49mm

Cutout

83mm83mm83mm83mm83mm83mm

CCT

2000k to 2800k

LED source

Bridgelux COB LED

CRI

RA95

Dimmable

0-100% super dimming

Shell color

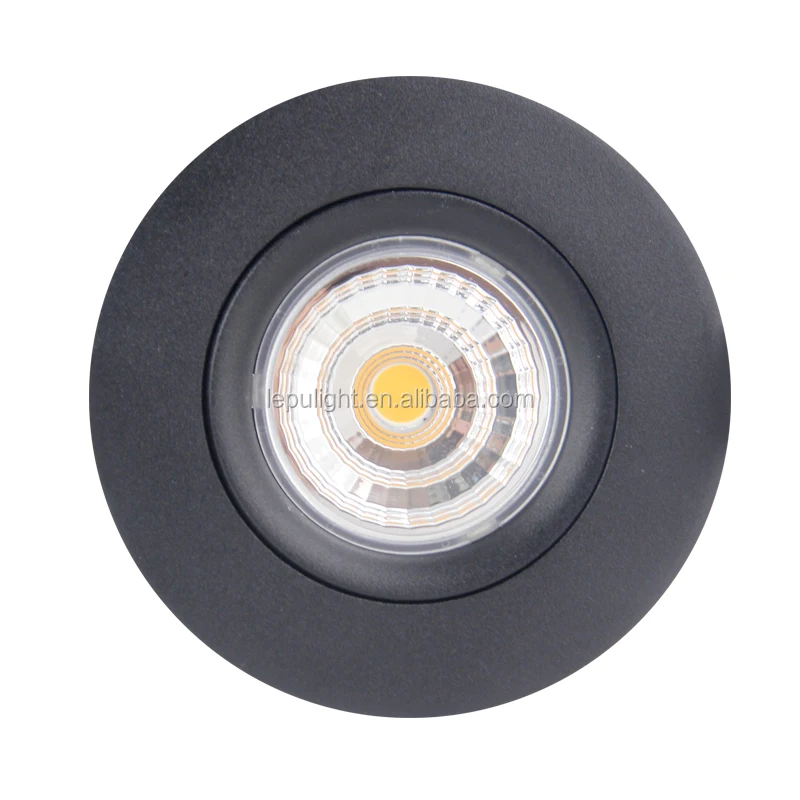

white/silver/black/nickel/Chrome

Warranty

5 years

IP level

IP44

Certification

CE&ROHS&SAA&TUV&NEMKO



Lepu cob led downlight advantages as below

1, Time is money. 5s fast wiring to save the labor costs.

2, GYRO 360 deg angle title,  Optional install to adjust the direction, convenient and save the labor costs.

3,  Pass NEMKO certification  ACTEC driver, with 5 years warranty.

4,  Unique heat dissipation design, Max 9watt, the shell temperature is 56°C. working 50000 hours.

5,  Round, Square or double square optional

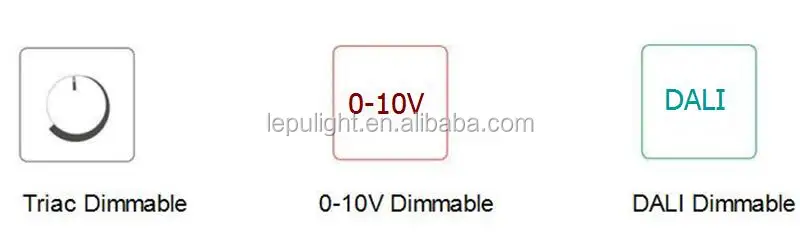

6, CCT Dim 2000k to 2800k control the brightness and color temperature by triac dimmer.
If need can custom the 0-10V or Dali driver.








Packaging & Shipping





Our Services



1. All inquiries will reply ASAP by professional sales with fluent English.



2. The sample order is shipped in 5-7 working days after payment.



3. The bulk order is shipped in 5-10 working days based on the quantity.



4. Lepu engineers always study & analyze the market and develop new products,

so new products will be continuously provided to you to make you more competitive in your market.



5. The order’s progress will be informed to customers by sales.



6. Customer’s logo is laser carved on the lights as required, OEM & ODM are welcomed.
